Schema railML.xsd

schema location:	../schema/railML.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Elements

railml

schema location:	../schema/infrastructure.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Elements	Complex types
infrastructure	eAttributes
infrastructureVisualizations	eAxleWeightChanges
	eBalises
	eBorder
	eBridge
	eBridges
	eClearanceGaugeChanges
	eConnections
	eControllers
	eCrossedElements
	eCrossing
	eCrossSections
	eDerailers
	eElectrificationChanges
	eGaugeChanges
	eGeneralInfraAttribute
	eGeneralInfraAttributes
	eGeoMappings
	eGradientChanges
	eInfraAttr
	eInfraAttrGroup
	eInfraAttrGroupRefs
	eInfrastructureVisualization
	eLevelCrossing
	eLevelCrossings
	eLine
	eLineVis
	eLocallyControlledArea
	eMileageChanges
	eOcp
	eOcpPropEquipment
	eOcpPropOperational
	eOcpPropOther
	eOcpVis
	eOcsElements
	eOperationControlPoints
	eOperationModeChanges
	eOwnerChanges
	ePlatformEdges
	ePowerTransmissionChanges
	eRadiusChanges
	eServiceSections
	eSignalGroup
	eSignalGroups
	eSignals
	eSpeedChanges
	eSpeedProfiles
	eSpeeds
	eStopPosts
	eSwitch
	eTrack
	eTrackBegin
	eTrackConditions
	eTrackElements
	eTrackElementVis
	eTrackEnd
	eTrackGroups
	eTrackNode
	eTracks
	eTrackTopology
	eTrackVis
	eTrainDetectionElements
	eTrainProtectionChanges
	eTrainProtectionElements
	eTrainRadioChanges
	eTunnel
	eTunnels

schema location:	../schema/rollingstock.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Elements	Complex types
rollingstock	eAuxiliarySupply
	eClassification
	eCouplers
	eCurvingLimitation
	eElectricalCoupler
	eEngine
	eETCS
	eFormation
	eFormations
	eFourQuadrantChopper
	eGear
	eGoods
	eLoadLimit
	eLoadLimitMatrix
	eMaintenanceIntervals
	eMechanicalCoupler
	eMonitoring
	eOperator
	ePantograph
	ePassenger
	ePneumaticCoupler
	ePropulsion
	ePulsePattern
	eStorage
	eTractionInverter
	eTractionMotor
	eTrainOrder
	eTrainRadio
	eTransformer
	eVehicle
	eVehicleBrake
	eVehicleBrakes
	eVehicles
	eWagon

schema location:	../schema/timetable.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Elements	Complex types
timetable	eAnnotation
	eAnnotations
	eArrivalDepartureTimes
	eBlock
	eBlockParts
	eBlockPartSequence
	eBlocks
	eBrakeUsage
	eCategories
	eCategory
	eCirculations
	eConnectionsTT
	eConnectionTT
	eEquipment
	eEquipmentUsage
	eExternalReference
	eFormationTT
	eHolidays
	eOcpsTT
	eOcpTT
	eOperatingDay
	eOperatingPeriod
	eOperatingPeriodRef
	eOperatingPeriods
	eOrganizationalUnitBinding
	ePassengerFacilityTT
	eReservationInfo
	eRostering
	eRosterings
	eSectionTT
	eStatistic
	eStatistics
	eStopDescription
	eTapTsiTransportOperationalIdentifier
	eTimetablePeriod
	eTimetablePeriods
	eTrain
	eTrainGroup
	eTrainGroups
	eTrainPart
	eTrainParts
	eTrainPartSequence
	eTrains

schema location:	../schema/infrastructureTypes.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Complex types	Simple types	Attr. groups
tAdditionalOcpName	tBaliseCountryID	aAbsPosition
tAttribute	tBaliseGroupID	aAxleWeight
tAxleWeight	tBaliseGroupType	aBalise
tAxleWeightChange	tBaliseLinkingAcc	aConnectionData
tBalise	tBaliseLinkReaction	aCrossedElement
tBaliseGroup	tBorderType	aDelimitedOrientation
tBaliseRefInGroup	tClearanceManaging	aElectrification
tBasePlacedElement	tConnectionOrientation	aEpsgCode
tBaseServiceSection	tCourse	aGauge
tBorder	tCrossedElementType	aInfrastructure
tBraking	tCrossingType	aLine
tBridge	tCrossSectionBlockType	aOcpRef
tBufferStop	tDerailKind	aOperationMode
tClearanceGaugeChange	tDetectionObject	aOrientation
tCommonSwitchAndCrossingData	tDetectorMedium	aOwner
tConnectionData	tElectrificationType	aPowerTransmission
tController	tHorizontalCurveType	aRadiusChange
tCrossedElement	tInfluence	aRelPosition
tCrossing	tInsulatedRailSide	aSignal
tCrossSection	tLevelCrossingSignalType	aSignalGroup
tDelimitedOrientedElement	tLineType	aSpeed
tDelimitedOrientedElementWithLength	tMileageChangeDescr	aStopPost
tDerailer	tOcpManMode	aStrictOrientation
tDesignator	tOcpNameType	aTrainProtection
tElectrification	tOcpOperationalType	aTrainRadioInfrastructure
tElectrificationChange	tOcpStatus
tEpsgCode	tOcpTrafficType
tGauge	tPIG
tGaugeChange	tPosInTrack
tGeoCoord	tPowerTransmissionType
tGradientChange	tSide
tInfrastructure	tSignalFunction
tInfrastructureVisualization	tSignalGroupType
tLevelCrossing	tSignalKind
tLine	tSignalType
tLocallyControlledArea	tSwitchType
tLocation	tTrackConditionType
tMacroscopicNode	tTrackType
tMileageChange	tTrainMovements
tOcpAdditionalName	tTrainRadioNetworkSelection
tOcpArea	tTrainRadioSystem
tOcpPropEquipmentSummary	tTrainRelation
tOcpPropOperational	tTunnelType
tOcpPropOther	tVMax
tOcpPropService
tOcpRefInGroup
tOcpTsi
tOcpUptime
tOcpWithIDAndName
tOpenEnd
tOperationControlPoint
tOperationMode
tOperationModeChange
tOrientedElement
tOrientedElementWithLength
tOwner
tOwnerChange
tPath
tPlacedElement
tPlacedElementWithLength
tPlatformEdge
tPoint
tPowerTransmission
tPowerTransmissionChange
tRadiusChange
tRuleCodeElement
tServiceSection
tSignal
tSignalBase
tSignalBraking
tSignalCatenary
tSignalEtcs
tSignalGroup
tSignalLevelCrossing
tSignalLine
tSignalMilepost
tSignalRefInGroup
tSignalSpeed
tSignalTrainRadio
tSize
tSpeedChange
tSpeedInfo
tSpeedProfile
tState
tStates
tStatesWithLength
tStateWithLength
tStopPost
tStrictOrientedElement
tStrictOrientedElementWithLength
tSwitch
tSwitchConnectionData
tTrack
tTrackCircuitBorder
tTrackCondition
tTrackNode
tTrackRefInGroup
tTrainDetector
tTrainProtection
tTrainProtectionChange
tTrainProtectionElement
tTrainProtectionElementGroup
tTrainRadioAttributes
tTrainRadioChange
tTunnel
tValidForMovements

schema location:	http://www.w3.org/2001/03/xml.xsd
targetNamespace:	http://www.w3.org/XML/1998/namespace

Attributes	Attr. groups
base	specialAttrs
id
lang
space

schema location:	../schema/rollingstockTypes.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Complex types	Simple types	Attr. groups
tAuxiliarySupply	tAcousticSignalType	aAssemblyNameNumber
tAuxiliarySupplySystem	tAxleDriveType	aAuxiliarySupply
tCurrentCurve	tBearingType	aCurvingLimitation
tCurrentLimitation	tCabPositionType	aDieselEngine
tCurve	tElectricalCouplerDesignType	aDoors
tCurvingLimitationType	tEndPositionType	aDriversCab
tDieselEngine	tFreightCarType	aEddyCurrentBrake
tDoors	tGangwayDesignType	aElectricalWagonCoupler
tDriversCabType	tGangwayPosition	aElectrificationSystem
tEddyCurrentBrake	tHeadShapeType	aEngine
tEfficiencyCurve	tLoadSwitch	aFormation
tEffortCurve	tMechanicalCouplerDesignType	aFourQuadrantChopper
tElectricalWagonCouplerType	tModulationType	aGangway
tElectrificationSystem	tMotivePowerType	aGear
tEngine	tPantographControlType	aGoods
tETCS	tPantographPositionType	aLineClassification
tFormation	tPneumaticCouplerFunctionType	aLoadLimit
tFourQuadrantChopper	tPropulsionControlType	aLoadLimitMatrix
tGangway	tRackSystemType	aMaintenanceInterval
tGear	tRadioSystem	aManufacturer
tGoods	tRelatedPositionType	aMechanicalWagonCoupler
tLineClassification	tSpeedRangeType	aMonitoringGeneric
tLink	tTorqueConversionType	aMonitoringSystem
tLoadLimitMatrixType	tTransmission	aNominalElectrical
tLoadLimitType	tVehicleCategoryType	aOperator
tLosses		aPantograph
tMaintenanceInterval		aPassenger
tManufacturer		aPneumaticWagonCoupler
tMechanicalWagonCouplerType		aPropulsion
tMonitoring		aRackTraction
tNationalSystem		aRailNetwork
tOperator		aRollingstock
tOtherEquipment		aSpecificTransmissionModule
tPantograph		aStorage
tPassenger		aTractionInverter
tPneumaticWagonCouplerType		aTractionMotor
tPropulsion		aTrainEngine
tRackTractionType		aTrainRadio
tRailNetwork		aTransformer
tRollingstock		aVehicle
tSpecificTransmissionModule		aVehicleBrake
tStorage		aVehicleIdentification
tTractionInverter		aVehicleRef
tTractionMotor		aWagon
tTrainEngine		aWinding
tTrainRadio
tTrainResistance
tTransformer
tValueTable
tVehicle
tVehicleIdentification
tVehicleRef
tWagon
tWinding

schema location:	../schema/timetableTypes.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Complex types	Simple types	Attr. groups
tAnnotation	tBitMask	aAnnotation
tAnnotationRef	tCompanyCode	aAnnotationRef
tAnnotationText	tConnOperation	aArrivalDepartureDelay
tArrivalDepartureTimes	tConnType	aArrivalDepartureTimes
tBlock	tMission	aBlock
tBlockPart	tOcpTTType	aBlockPart
tBlockPartRef	tOnOff	aBlockPartSequence
tBlockPartSequence	tOperatingCode	aBooking
tBooking	tPathStatus	aBrakeUsage
tCategory	tPlaceReservation	aCategory
tCirculation	tProcessStatus	aCirculation
tConnectionTT	tRosteringScope	aConnectionTT
tEquipment	tSpecialServiceType	aEquipment
tEtcsTT	tStatisticFigure	aFormationTT
tFormationTT	tTapTsiCore	aHoliday
tHoliday	tTapTsiObjectType	aOcpTT
tOcpTT	tTapTsiStartDate	aOperatingCode
tOperatingDay	tTapTsiTimetableYear	aOperatingDayDeviance
tOperatingDayDeviance	tTapTsiVariant	aOperatingPeriod
tOperatingPeriod	tTimeScope	aOperatingPeriodRef
tOperatingPeriodRef	tTrainGroupType	aRostering
tPlacesTT	tTrainScope	aRunTimes
tPlatformEdgeRef	tTrainType	aSectionTT
tRostering	tUsageType	aServicePeriod
tRunTimes		aSpecialService
tSectionTT		aStatisticAnalyses
tServiceSectionRef		aStopDescription
tSpecialService		aStopTimes
tSpeedProfileRef		aTapTsiCompositIdentifierOperationalType
tStandardDeviationTimes		aTimesScope
tStatistic		aTimetable
tStatisticAnalyses		aTimetablePeriod
tStatisticTimes		aTrain
tStopDescription		aTrainGroup
tStopTimes		aTrainPart
tTapTsiCompositIdentifierOperationalType		aTrainPartRef
tTimetable		aTrainPartSequence
tTimetablePeriod
tTrackRef
tTrain
tTrainGroup
tTrainPart
tTrainPartRef
tTrainPartSequence

schema location:	../schema/railwayUnits.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Simple types

tDelimitedDirection

tEffortNewton

tEtcsTrainCategory

tExtendedDirection

tFlowDirection

tLaxDirection

tMeterload

tMeterloadTonsPerMeter

tMileageDirection

tStrictDirection

tTrainAlignment

tTrainCategory

schema location:	../schema/railwayBaseTypes.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Complex types	Simple types	Attr. groups
ePassengerFacility	tAirBrakeApplicationPosition	aAuxiliaryBrakes
tBasicBrakeType	tBrakePercentage	aBasicBrakeAttributes
tClearanceGaugeType	tBrakeType	aClearanceGauge
tConcessionaire	tBrakeUse	aETCS
tContractor	tInterlockingTypes	aMinBasicBrakeAttributes
tCustomer	tLineClassificationType	aPeriodTimeSpan
tInfrastructureManager	tPlaceCategory	aPlaces
tMetadata	tServiceType	aService
tOperationalUndertaking	tTiltingActuationType	aTilting
tOrganizationalUnits	tTimeZone	aTimePeriod
tPlaces	tTrainProtectionMedium
tRailwayUndertaking	tTrainProtectionMonitoring
tService
tTilting
tTimeSpan
tVehicleManufacturer
tVehicleOperator

schema location:	../schema/physicalUnits.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Simple types

tAcceleration

tAccelerationMeterPerSquareSec

tAngleDeg

tAngleDegFullCircle

tAngleDegQuadrant

tArea

tAreaSquareMeter

tCurrent

tCurrentAmpere

tEnergy

tEnergyKiloWattHours

tFlux

tFluxVoltSecond

tForce

tForceNewton

tFrequency

tFrequencyHertz

tGradient

tGradientPromille

tInductance

tInductanceHenry

tLength

tLengthKM

tLengthM

tLengthMM

tPower

tPowerWatt

tRadiusM

tResistance

tResistanceOhm

tRotationalFrequency

tRotationalFrequencyRevolutionsPerMinute

tSpeed

tSpeedDegreesPerSecond

tSpeedKmPerHour

tSpeedMPerSec

tUnitName

tVoltage

tVoltageVolt

tVolume

tVolumeCubicMeter

tVolumeLitre

tWeight

tWeightKG

tWeightTons

schema location:	../schema/genericRailML.xsd
attributeFormDefault:
elementFormDefault:	qualified
targetNamespace:	http://www.railml.org/schemas/2016

Complex types	Simple types	Attr. groups
tAdditionalName	tCoordinateList	anyAttribute
tElementRefInGroup	tCounter
tElementWithIDAndName	tDigitString
tElementWithIDAndNameWithoutAny	tDoubleList
tElementWithReference	tElementDescription
tGlobalElementWithMetadata	tFiveDigits
	tFiveLetterString
	tFourDigits
	tGenericID
	tGenericName
	tGenericRef
	tOneDigit
	tOneToZero
	tOtherEnumerationValue
	tPositiveCounter
	tRailMLVersion
	tThreeDigits
	tThreeLetterString
	tTwelveDigits
	tTwoDigits
	tVerbalCounter
	tVersionNumber

schema location:	http://dublincore.org/schemas/xmls/qdc/2008/02/11/dc.xsd
attributeFormDefault:	unqualified
elementFormDefault:	qualified
targetNamespace:	http://purl.org/dc/elements/1.1/

Elements	Groups	Complex types
any	elementsGroup	elementContainer
contributor		SimpleLiteral
coverage
creator
date
description
format
identifier
language
publisher
relation
rights
source
subject
title
type

element railml

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:metadata rail:infrastructure rail:infrastructureVisualizations rail:rollingstock rail:timetable
attributes	Name   Type   Use   Default   Fixed   Annotation version   rail:tRailMLVersion            documentation supported railML version should be declared for software compatibility reasons, valid for all subschemas, don't mix railML versions between subschemas in one XML file
identity constraints	Name   Refer   Selector   Field(s)   Annotation key   infrastructureManagerKey      .//rail:organizationalUnits/rail:infrastructureManager   @id   keyref   infrastructureManager-ownerKeyref   rail:infrastructureManagerKey   .//rail:infraAttributes/rail:owner   @infrastructureManagerRef   keyref   infrastructureManager-ownerChangeKeyref   rail:infrastructureManagerKey   .//rail:ownerChange   @infrastructureManagerRef   keyref   infrastructureManager-lineKeyref   rail:infrastructureManagerKey   .//rail:line   @infrastructureManagerRef   key   vehicleManufacturerKey      .//rail:organizationalUnits/rail:vehicleManufacturer   @id   keyref   vehicleManufacturer-manufacturerKeyref   rail:vehicleManufacturerKey   .//rail:classification/rail:manufacturer   @vehicleManufacturerRef   key   vehicleOperatorKey      .//rail:organizationalUnits/rail:vehicleOperator   @id   keyref   vehicleOperator-operatorKeyref   rail:vehicleOperatorKey   .//rail:classification/rail:operator   @vehicleOperatorRef   key   customerKey      .//rail:organizationalUnits/rail:customer   @id   keyref   customer-customerKeyref   rail:customerKey   .//rail:organizationalUnitBinding/rail:customer   @ref   key   railwayUndertakingKey      .//rail:organizationalUnits/rail:railwayUndertaking   @id   keyref   railwayUndertaking-railwayUndertakingKeyref   rail:railwayUndertakingKey   .//rail:organizationalUnitBinding/rail:railwayUndertaking   @ref   key   operationalUndertakingKey      .//rail:organizationalUnits/rail:operationalUndertaking   @id   keyref   operationalUndertaking-operationalUndertakingKeyref   rail:operationalUndertakingKey   .//rail:organizationalUnitBinding/rail:operationalUndertaking   @ref   key   concessionaireKey      .//rail:organizationalUnits/rail:concessionaire   @id   keyref   concessionaire-concessionaireKeyref   rail:concessionaireKey   .//rail:organizationalUnitBinding/rail:concessionaire   @ref   key   contractorKey      .//rail:organizationalUnits/rail:contractor   @id   keyref   contractor-contractorKeyref   rail:contractorKey   .//rail:organizationalUnitBinding/rail:contractor   @ref   key   ocpKey      .//rail:operationControlPoints/rail:ocp   @id   keyref   ocp-macroscopicNodeKeyref   rail:ocpKey   .//rail:macroscopicNode   @ocpRef   keyref   ocp-switchKeyref   rail:ocpKey   .//rail:switch   @ocpStationRef   keyref   ocp-crossSectionKeyref   rail:ocpKey   .//rail:crossSections/rail:crossSection   @ocpRef   keyref   ocp-levelCrossingKeyref   rail:ocpKey   .//rail:levelCrossings/rail:levelCrossing   @ocpStationRef   keyref   ocp-signalKeyref   rail:ocpKey   .//rail:signals/rail:signal   @ocpStationRef   keyref   ocp-trainDetectorKeyref   rail:ocpKey   .//rail:trainDetectionElements/rail:trainDetector   @ocpStationRef   keyref   ocp-trackCircuitBorderKeyref   rail:ocpKey   .//rail:trainDetectionElements/rail:trackCircuitBorder   @ocpStationRef   keyref   ocp-platformEdgeKeyref   rail:ocpKey   .//rail:platformEdges/rail:platformEdge   @ocpRef   keyref   ocp-serviceSectionKeyref   rail:ocpKey   .//rail:serviceSections/rail:serviceSection   @ocpRef   keyref   ocp-stopPostKeyref   rail:ocpKey   .//rail:stopPosts/rail:stopPost   @ocpRef   keyref   ocp-locallyControlledAreaKeyref   rail:ocpKey   .//rail:trackGroups/rail:locallyControlledArea   @ocpStationRef   keyref   ocp-stateKeyref   rail:ocpKey   .//rail:states/rail:state/rail:*   @ocpRef   keyref   ocp-signal-signalBoxKeyref   rail:ocpKey   .//rail:signals/rail:signal   @signalBoxOcpRef   keyref   ocp-signal-stationKeyref   rail:ocpKey   .//rail:signals/rail:signal   @stationOcpRef   keyref   ocp-locallyControlledArea-shortKeyref   rail:ocpKey   .//rail:trackGroups/rail:locallyControlledArea   @ocpRef   keyref   ocp-ocpTTKeyref   rail:ocpKey   .//rail:ocpsTT/rail:ocpTT   @ocpRef   keyref   ocp-connectionKeyref   rail:ocpKey   .//rail:ocpTT/rail:connections/rail:connection   @ocpRef   keyref   ocp-blockPartStartKeyref   rail:ocpKey   .//rail:blockParts/rail:blockPart   @startOcpRef   keyref   ocp-blockPartEndKeyref   rail:ocpKey   .//rail:blockParts/rail:blockPart   @endOcpRef   key   trackKey      .//rail:tracks/rail:track   @id   keyref   track-lineKeyref   rail:trackKey   .//rail:trackGroups/rail:line/rail:trackRef   @ref   keyref   track-locallyControlledAreaKeyref   rail:trackKey   .//rail:trackGroups/rail:locallyControlledArea/rail:trackRef   @ref   keyref   track-ocpKeyref   rail:trackKey   .//rail:operationControlPoints/rail:ocp/rail:propEquipment/rail:trackRef   @ref   keyref   track-ocpTTKeyref   rail:trackKey   .//rail:ocpsTT/rail:ocpTT   @trackRef   keyref   track-sectionTTKeyref   rail:trackKey   .//rail:ocpTT/rail:sectionTT/rail:trackRef   @ref   key   lineKey      .//rail:trackGroups/rail:line   @id   keyref   line-signalLineKeyref   rail:lineKey   .//rail:signal/rail:line   @ref   keyref   line-signalMilepostKeyref   rail:lineKey   .//rail:signal/rail:milepost   @lineRef   keyref   line-sectionTTKeyref   rail:lineKey   .//rail:ocpTT/rail:sectionTT   @lineRef   key   vehicleKey      .//rail:vehicles/rail:vehicle   @id   keyref   vehicle-vehicleFamilyKeyref   rail:vehicleKey   .//rail:vehicles/rail:vehicle   @vehicleFamilyRef   keyref   vehicle-trainOrderKeyref   rail:vehicleKey   .//rail:trainOrder/rail:vehicleRef   @vehicleRef   keyref   vehicle-bookingKeyref   rail:vehicleKey   .//rail:reservationInfo/rail:booking   @vehicleRef   keyref   vehicle-rosteringKeyref   rail:vehicleKey   .//rail:rosterings/rail:rostering   @vehicleRef   keyref   vehicle-blockPartKeyref   rail:vehicleKey   .//rail:blockParts/rail:blockPart   @vehicleRef   key   formationKey      .//rail:formations/rail:formation   @id   keyref   formation-formationTTKeyref   rail:formationKey   .//rail:trainParts/rail:trainPart/rail:formationTT   @formationRef   keyref   formation-rosteringKeyref   rail:formationKey   .//rail:rosterings/rail:rostering   @formationRef   keyref   formation-blockPartKeyref   rail:formationKey   .//rail:blockParts/rail:blockPart   @formationRef   key   categoryKey      .//rail:categories/rail:category   @id   keyref   category-trainPartKeyref   rail:categoryKey   .//rail:trainParts/rail:trainPart   @categoryRef   keyref   category-trainPartSequenceKeyref   rail:categoryKey   .//rail:trains/rail:train/rail:trainPartSequence   @categoryRef   keyref   category-formationKeyref   rail:categoryKey   .//rail:formations/rail:formation/rail:categoryRef   @ref   key   speedProfileKey      .//rail:speedProfiles/rail:speedProfile   @id   keyref   speedProfile-trainPartSequenceKeyref   rail:speedProfileKey   .//rail:trainPartSequence/rail:speedProfileRef   @ref   key   stopPostKey      .//rail:stopPosts/rail:stopPost   @id   keyref   stopPost-stopDescriptionKeyref   rail:stopPostKey   .//rail:ocpsTT/rail:ocpTT/rail:stopDescription   @stopPostRef   key   platformEdgeKey      .//rail:platformEdges/rail:platformEdge   @id   keyref   platformEdge-platformEdgeKeyref   rail:platformEdgeKey   .//rail:platformEdges/rail:platformEdge   @parentPlatformEdgeRef   keyref   platformEdge-stopPostKeyref   rail:platformEdgeKey   .//rail:stopPosts/rail:stopPost   @platformEdgeRef   keyref   platformEdge-stopDescriptionKeyref   rail:platformEdgeKey   .//rail:stopDescription/rail:platformEdgeRef   @ref   key   serviceSectionKey      .//rail:serviceSections/rail:serviceSection   @id   keyref   serviceSection-serviceSectionKeyref   rail:serviceSectionKey   .//rail:serviceSections/rail:serviceSection   @parentServiceSectionRef   keyref   serviceSection-stopDescriptionKeyref   rail:serviceSectionKey   .//rail:stopDescription/rail:serviceSectionRef   @ref   key   operatingPeriodKey      .//rail:operatingPeriods/rail:operatingPeriod   @id   keyref   operatingPeriod-trainPartKeyref   rail:operatingPeriodKey   .//rail:trainParts/rail:trainPart/rail:operatingPeriodRef   @ref   keyref   operatingPeriod-stopDescriptionKeyref   rail:operatingPeriodKey   .//rail:ocpsTT/rail:ocpTT/rail:stopDescription   @operatingPeriodRef   keyref   operatingPeriod-blockPartKeyref   rail:operatingPeriodKey   .//rail:blockParts/rail:blockPart   @operatingPeriodRef   keyref   operatingPeriod-circulationKeyref   rail:operatingPeriodKey   .//rail:circulations/rail:circulation   @operatingPeriodRef   keyref   operatingPeriod-circulationNextKeyref   rail:operatingPeriodKey   .//rail:circulations/rail:circulation   @nextOperatingPeriodRef   keyref   operatingPeriod-annotationKeyref   rail:operatingPeriodKey   .//rail:annotationRef   @operatingPeriodRef   keyref   operatingPeriod-stateKeyref   rail:operatingPeriodKey   .//rail:states/rail:state   @operatingPeriodRef   keyref   operatingPeriod-speedProfileKeyref   rail:operatingPeriodKey   .//rail:speedProfiles/rail:speedProfile   @operatingPeriodRef

attribute railml/@version

type	rail:tRailMLVersion
facets	Kind  Value  Annotation pattern  [1-9][0-9]?\.([0-9]|[1-9][0-9])(\.[1-9][0-9]?)?(r[1-9][0-9]?[0-9]?)?
annotation	documentation supported railML version should be declared for software compatibility reasons, valid for all subschemas, don't mix railML versions between subschemas in one XML file

element railml/metadata

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tMetadata
children	any rail:organizationalUnits

element infrastructure

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tInfrastructure
children	rail:additionalName rail:metadata rail:infraAttrGroups rail:tracks rail:trackGroups rail:operationControlPoints rail:controllers rail:speedProfiles
used by	element  railml
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag version   rail:tRailMLVersion            documentation only used, if subschema element is outsourced, else use 'version' attribute in root element ('railml') xml:base   xs:anyURI            documentation provide outsourcing of subschema element with xi:include mechanism timetableRef   rail:tGenericRef            rollingstockRef   rail:tGenericRef
identity constraints	Name   Refer   Selector   Field(s)   Annotation key   infraAttributesKey      .//rail:infraAttrGroups/rail:infraAttributes   @id   keyref   infraAttributes-trackKeyref   rail:infraAttributesKey   .//rail:tracks/rail:track   @infraAttrGroupRef   keyref   infraAttributes-infraAttrGroupRefKeyref   rail:infraAttributesKey   .//rail:infraAttrGroupRefs/rail:infraAttrGroupRef   @ref   key   connectionKey      .//rail:connection   @id   keyref   connection-connectionKeyref   rail:connectionKey   .//rail:connection   @ref   key   speedChangeKey      .//rail:speedChanges/rail:speedChange   @id   keyref   speedChange-signalSpeedRefKeyref   rail:speedChangeKey   .//rail:signal/rail:speed/rail:speedChangeRef   @ref   key   levelCrossingKey      .//rail:levelCrossings/rail:levelCrossing   @id   keyref   levelCrossing-signalLevelCrossingKeyref   rail:levelCrossingKey   .//rail:signal/rail:levelCrossing   @ref   key   trackConditionKey      .//rail:trackConditions/rail:trackCondition   @id   keyref   trackCondition-signalTrainRadioKeyref   rail:trackConditionKey   .//rail:signal/rail:trainRadio   @trackConditionRef   keyref   trackCondition-signalCatenaryKeyref   rail:trackConditionKey   .//rail:signal/rail:catenary   @trackConditionRef   keyref   trackCondition-signalBrakingKeyref   rail:trackConditionKey   .//rail:signal/rail:braking   @trackConditionRef   key   mileageChangeKey      .//rail:mileageChanges/rail:mileageChange   @id   keyref   mileageChange-signalMilepostKeyref   rail:mileageChangeKey   .//rail:signal/rail:milepost   @mileageChangeRef   key   signalKey      .//rail:signals/rail:signal   @id   keyref   signal-signalRefKeyref   rail:signalKey   .//rail:stopPost/rail:signalRef   @ref   keyref   signal-signalGroupKeyref   rail:signalKey   .//rail:signalGroups/rail:signalGroup/rail:signalRef   @ref   key   baliseKey      .//rail:balises/rail:balise   @id   keyref   balise-baliseGroupKeyref   rail:baliseKey   .//rail:baliseGroup/rail:baliseRef   @ref   key   baliseGroupKey      .//rail:balises/rail:baliseGroup   @id   keyref   baliseGroup-signalKeyref   rail:baliseGroupKey   .//rail:signals/rail:signal/rail:baliseGroupRef   @ref   key   trainProtectionElementKey      .//rail:trainProtectionElements/rail:trainProtectionElement   @id   keyref   trainProtectionElement-trainProtectionElementGroupKeyref   rail:trainProtectionElementKey   .//rail:trainProtectionElementGroup/rail:trainProtectionElementRef   @ref   key   trainProtectionElementGroupKey      .//rail:trainProtectionElements/rail:trainProtectionElementGroup   @id   keyref   trainProtectionElementGroup-signalKeyref   rail:trainProtectionElementGroupKey   .//rail:signals/rail:signal/rail:trainProtectionElementGroupRef   @ref   key   controllerKey      .//rail:controllers/rail:controller   @id   keyref   controller-switchKeyref   rail:controllerKey   .//rail:switch   @controllerRef   keyref   controller-levelCrossingKeyref   rail:controllerKey   .//rail:levelCrossings/rail:levelCrossing   @controllerRef   keyref   controller-signalKeyref   rail:controllerKey   .//rail:signals/rail:signal   @controllerRef   keyref   controller-trainDetectorKeyref   rail:controllerKey   .//rail:trainDetectionElements/rail:trainDetector   @controllerRef   keyref   controller-trackCircuitBorderKeyref   rail:controllerKey   .//rail:trainDetectionElements/rail:trackCircuitBorder   @controllerRef   keyref   controller-locallyControlledAreaKeyref   rail:controllerKey   .//rail:trackGroups/rail:locallyControlledArea   @controllerRef

element infrastructure/infraAttrGroups

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eInfraAttrGroup
children	rail:infraAttributes

element infrastructure/tracks

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTracks
children	rail:track

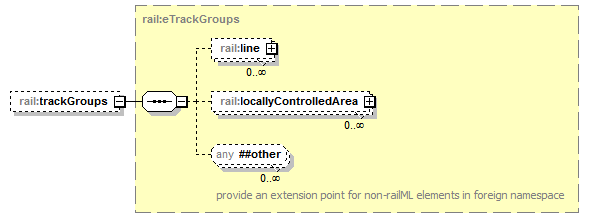

element infrastructure/trackGroups

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTrackGroups
children	rail:line rail:locallyControlledArea

element infrastructure/operationControlPoints

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOperationControlPoints
children	rail:ocp

element infrastructure/controllers

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eControllers
children	rail:controller

element infrastructure/speedProfiles

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eSpeedProfiles
children	rail:speedProfile

element infrastructureVisualizations

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:visualization
used by	element  railml
attributes	Name   Type   Use   Default   Fixed   Annotation xml:base   xs:anyURI            documentation <div> <h3>base (as an attribute name)</h3> <p>        denotes an attribute whose value        provides a URI to be used as the base for interpreting any        relative URIs in the scope of the element on which it        appears; its value is inherited.  This name is reserved        by virtue of its definition in the XML Base specification.</p> <p>       See <a href="http://www.w3.org/TR/xmlbase/">http://www.w3.org/TR/xmlbase/</a>       for information about this attribute.      </p> </div>

element infrastructureVisualizations/visualization

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eInfrastructureVisualization
children	rail:lineVis rail:ocpVis
attributes	Name   Type   Use   Default   Fixed   Annotation version   rail:tRailMLVersion   required         infrastructureRef   rail:tGenericRef            id   rail:tGenericID   required

complexType eAttributes

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:attribute
used by	element  eGeneralInfraAttribute/attributes

element eAttributes/attribute

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tAttribute
attributes	Name   Type   Use   Default   Fixed   Annotation name   xs:string   required         value   xs:string   required

complexType eAxleWeightChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:axleWeightChange
used by	element  eTrackElements/axleWeightChanges

element eAxleWeightChanges/axleWeightChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tAxleWeightChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" value   rail:tWeightTons   required         meterload   rail:tMeterloadTonsPerMeter

complexType eBalises

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:balise rail:baliseGroup
used by	element  eOcsElements/balises

element eBalises/balise

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tBalise
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tLaxDirection            documentation a direction, which allows for all direction attributes countryID   rail:tBaliseCountryID            groupID   rail:tBaliseGroupID            linkingAccuracy   rail:tBaliseLinkingAcc            linkReactionAscending   rail:tBaliseLinkReaction            linkReactionDescending   rail:tBaliseLinkReaction            staticTelegram   xs:string            ndx   rail:tPIG

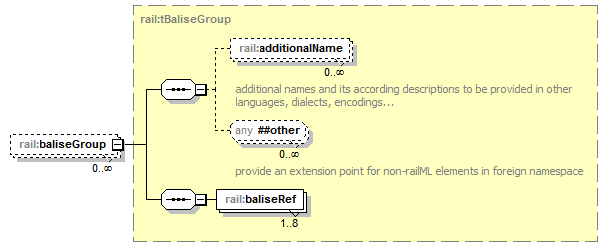

element eBalises/baliseGroup

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tBaliseGroup
children	rail:additionalName rail:baliseRef
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag type   rail:tBaliseGroupType            documentation functional type of the balise group

complexType eBorder

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:border
used by	element  eTrackTopology/borders

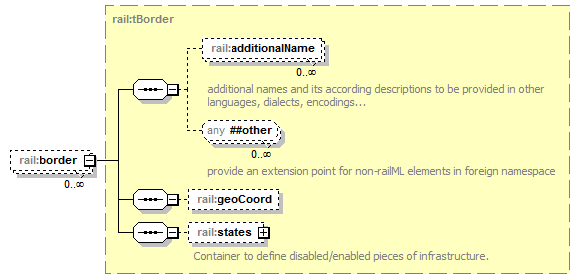

element eBorder/border

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tBorder
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tDelimitedDirection            documentation a limited direction, which allows only for "up", "down" and "unknown" type   rail:tBorderType   required

complexType eBridge

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tBridge
children	rail:additionalName rail:geoCoord rail:states rail:crossedElements
used by	element  eBridges/brigde
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used length   rail:tLengthM            documentation length along the track in meters dir   rail:tDelimitedDirection            documentation a limited direction, which allows only for "up", "down" and "unknown" kind   xs:string            meterload   rail:tMeterloadTonsPerMeter

element eBridge/crossedElements

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eCrossedElements
children	rail:crossedElement
annotation	documentation list the elements that are crossed by this element

complexType eBridges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:brigde
used by	element  eTrackElements/bridges

element eBridges/brigde

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eBridge
children	rail:additionalName rail:geoCoord rail:states rail:crossedElements
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used length   rail:tLengthM            documentation length along the track in meters dir   rail:tDelimitedDirection            documentation a limited direction, which allows only for "up", "down" and "unknown" kind   xs:string            meterload   rail:tMeterloadTonsPerMeter

complexType eClearanceGaugeChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:clearanceGaugeChange
used by	element  eTrackElements/clearanceGaugeChanges

element eClearanceGaugeChanges/clearanceGaugeChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tClearanceGaugeChange
children	rail:additionalName rail:geoCoord rail:states rail:clearanceGauge
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down"

complexType eConnections

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:switch rail:crossing
used by	element  eTrackTopology/connections

element eConnections/switch

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eSwitch
children	rail:additionalName rail:geoCoord rail:states rail:connection
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used trackContinueCourse   rail:tCourse            trackContinueRadius   rail:tRadiusM            normalPosition   rail:tCourse            model   xs:string            length   rail:tLengthM            ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking type   rail:tSwitchType

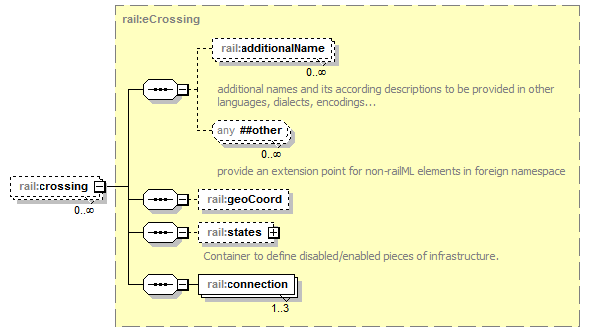

element eConnections/crossing

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eCrossing
children	rail:additionalName rail:geoCoord rail:states rail:connection
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used trackContinueCourse   rail:tCourse            trackContinueRadius   rail:tRadiusM            normalPosition   rail:tCourse            model   xs:string            length   rail:tLengthM            ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking type   rail:tCrossingType

complexType eControllers

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:controller
used by	element  infrastructure/controllers

element eControllers/controller

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tController
children	rail:additionalName rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag

complexType eCrossedElements

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:crossedElement
used by	elements  eTunnel/crossedElements eBridge/crossedElements eLevelCrossing/crossedElements

element eCrossedElements/crossedElement

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tCrossedElement
children	rail:additionalName
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag type   rail:tCrossedElementType   required         documentation the type of element crossed by this element pos   rail:tLengthM            documentation the relative position of the center of the crossed element as distance from begin of track documentation this value must be within the position range of the parent element

complexType eCrossing

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tCrossing
children	rail:additionalName rail:geoCoord rail:states rail:connection
used by	element  eConnections/crossing
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used trackContinueCourse   rail:tCourse            trackContinueRadius   rail:tRadiusM            normalPosition   rail:tCourse            model   xs:string            length   rail:tLengthM            ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking type   rail:tCrossingType

element eCrossing/connection

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tSwitchConnectionData
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         ref   rail:tGenericRef   required         course   rail:tCourse            radius   rail:tRadiusM            maxSpeed   rail:tSpeedKmPerHour            branchDist   rail:tLengthM            documentation DEPRECATED: use short 'track' instead orientation   rail:tConnectionOrientation   required         passable   xs:boolean      true

complexType eCrossSections

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:crossSection
used by	element  eTrackTopology/crossSections

element eCrossSections/crossSection

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tCrossSection
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used type   rail:tCrossSectionBlockType            ocpRef   rail:tGenericRef   required         ocpTrackID   xs:unsignedByte            documentation DEPRECATED since it is not needed anymore (for defining platforms, please use the platform element instead) dir   rail:tLaxDirection            documentation DEPRECATED since it is not needed here.

complexType eDerailers

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:derailer
used by	element  eOcsElements/derailers

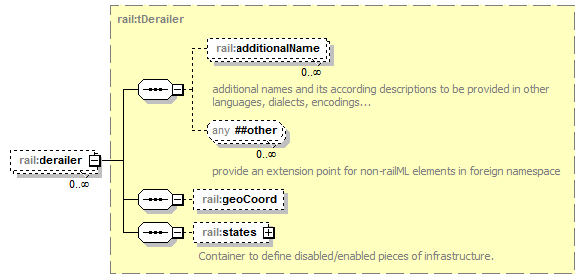

element eDerailers/derailer

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tDerailer
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tLaxDirection            documentation a direction, which allows for all direction attributes ruleCode   rail:tElementDescription            documentation Code for this element in the rule book, combination of letters and numbers and space allowed, e.g. Ne5, GA, SFRS/E derailSide   rail:tSide            documentation Side, to which the vehicle will be derailed (left or right) considering the orientation of the track. kind   rail:tDerailKind            documentation kind of derail device (cp. book "Railway Signalling and Interlocking" by Gregor Theeg and Sergej Vlasenko (Editors), p. 155) model   xs:string            documentation specification of the derailer

complexType eElectrificationChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:electrificationChange
used by	element  eTrackElements/electrificationChanges

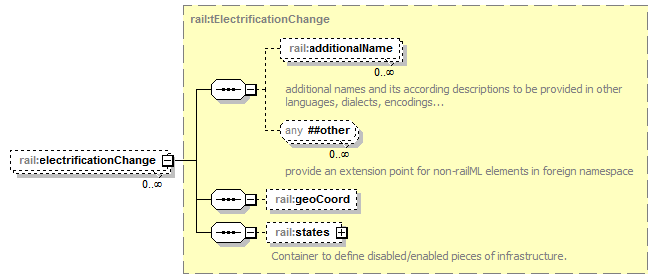

element eElectrificationChanges/electrificationChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tElectrificationChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" type   rail:tElectrificationType      none      voltage   rail:tVoltageVolt      0      frequency   rail:tFrequencyHertz      0      vMax   rail:tSpeedKmPerHour            isolatedSection   xs:boolean      false

complexType eGaugeChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:gaugeChange
used by	element  eTrackElements/gaugeChanges

element eGaugeChanges/gaugeChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tGaugeChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" value   rail:tLengthMM      1435

complexType eGeneralInfraAttribute

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:attributes
used by	element  eGeneralInfraAttributes/generalInfraAttribute

element eGeneralInfraAttribute/attributes

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eAttributes
children	rail:attribute

complexType eGeneralInfraAttributes

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:generalInfraAttribute
used by	element  eInfraAttr/generalInfraAttributes

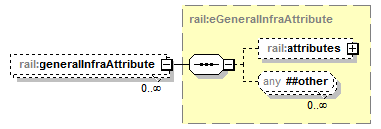

element eGeneralInfraAttributes/generalInfraAttribute

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eGeneralInfraAttribute
children	rail:attributes

complexType eGeoMappings

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:geoMapping
used by	element  eTrackElements/geoMappings

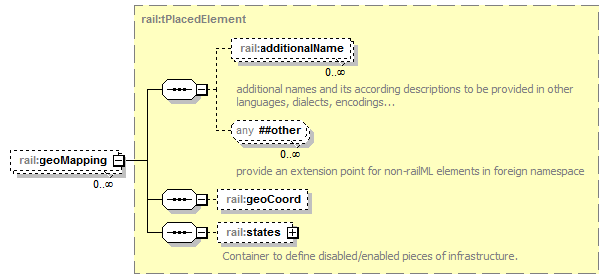

element eGeoMappings/geoMapping

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tPlacedElement
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used

complexType eGradientChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:gradientChange
used by	element  eTrackElements/gradientChanges

element eGradientChanges/gradientChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tGradientChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" slope   rail:tGradientPromille   required         transitionLenght   rail:tLengthM            transitionRadius   rail:tRadiusM

complexType eInfraAttr

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tElementWithIDAndNameWithoutAny
children	rail:owner rail:operationMode rail:trainProtection rail:electrification rail:powerTransmission rail:axleWeight rail:gauge rail:clearanceGauge rail:speeds rail:epsgCode rail:trainRadio rail:generalInfraAttributes
used by	element  eInfraAttrGroup/infraAttributes
attributes	Name   Type   Use   Default   Fixed   Annotation name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag; should always be given id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding

element eInfraAttr/owner

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOwner
attributes	Name   Type   Use   Default   Fixed   Annotation ownerName   xs:string   optional         documentation DEPRECATED, use infrastructureManagerRef instead to refer to a listed infrastructureManager uic-no   rail:tPositiveCounter            infrastructureManagerRef   rail:tGenericRef            documentation reference to the infrastructure manager entry

element eInfraAttr/operationMode

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOperationMode
attributes	Name   Type   Use   Default   Fixed   Annotation modeLegislative   xs:string   required         modeExecutive   xs:string   required         clearanceManaging   rail:tClearanceManaging

element eInfraAttr/trainProtection

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tTrainProtection
attributes	Name   Type   Use   Default   Fixed   Annotation monitoring   rail:tTrainProtectionMonitoring      none      medium   rail:tTrainProtectionMedium

element eInfraAttr/electrification

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tElectrification
attributes	Name   Type   Use   Default   Fixed   Annotation type   rail:tElectrificationType      none      voltage   rail:tVoltageVolt      0      frequency   rail:tFrequencyHertz      0

element eInfraAttr/powerTransmission

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tPowerTransmission
attributes	Name   Type   Use   Default   Fixed   Annotation type   rail:tPowerTransmissionType      adhesion      style   xs:string

element eInfraAttr/axleWeight

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tAxleWeight
attributes	Name   Type   Use   Default   Fixed   Annotation value   rail:tWeightTons   required         meterload   rail:tMeterloadTonsPerMeter

element eInfraAttr/gauge

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tGauge
attributes	Name   Type   Use   Default   Fixed   Annotation value   rail:tLengthMM      1435

element eInfraAttr/clearanceGauge

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tClearanceGaugeType
attributes	Name   Type   Use   Default   Fixed   Annotation code   xs:string   required         documentation code name of the train clearance gauge documentation use value from the separate code definition file 'TrainClearanceGauges.xml'/trainClearanceGauge

element eInfraAttr/speeds

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eSpeeds
children	rail:speed

element eInfraAttr/epsgCode

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tEpsgCode
attributes	Name   Type   Use   Default   Fixed   Annotation default   xs:anyURI   required         extraHeight   xs:anyURI

element eInfraAttr/trainRadio

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tTrainRadioAttributes
attributes	Name   Type   Use   Default   Fixed   Annotation radioSystem   rail:tTrainRadioSystem   required         documentation the train radio system, e.g. 'GSM-R' networkSelection   rail:tTrainRadioNetworkSelection            documentation defines the procedure of train radio network selection publicEmergency   xs:boolean            documentation defines whether public emergency calls are available broadcastCalls   xs:boolean            documentation defines whether broadcast call functionality is available textMessageService   xs:boolean            documentation defines whether text message service (SMS) is available directMode   xs:boolean            documentation defines whether direct mode train radio is available publicNetworkRoaming   xs:boolean            documentation defines whether roaming via public networks is available

element eInfraAttr/generalInfraAttributes

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eGeneralInfraAttributes
children	rail:generalInfraAttribute

complexType eInfraAttrGroup

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:infraAttributes
used by	element  infrastructure/infraAttrGroups

element eInfraAttrGroup/infraAttributes

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eInfraAttr
children	rail:owner rail:operationMode rail:trainProtection rail:electrification rail:powerTransmission rail:axleWeight rail:gauge rail:clearanceGauge rail:speeds rail:epsgCode rail:trainRadio rail:generalInfraAttributes
attributes	Name   Type   Use   Default   Fixed   Annotation name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag; should always be given id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding

complexType eInfraAttrGroupRefs

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:infraAttrGroupRef
used by	element  eTrack/infraAttrGroupRefs

element eInfraAttrGroupRefs/infraAttrGroupRef

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tElementWithReference
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element
annotation	documentation sub-element for a reference to an infraAttrGroup

complexType eInfrastructureVisualization

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tInfrastructureVisualization
children	rail:lineVis rail:ocpVis
used by	element  infrastructureVisualizations/visualization
attributes	Name   Type   Use   Default   Fixed   Annotation version   rail:tRailMLVersion   required         infrastructureRef   rail:tGenericRef            id   rail:tGenericID   required

element eInfrastructureVisualization/lineVis

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eLineVis
children	rail:trackVis
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element

element eInfrastructureVisualization/ocpVis

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOcpVis
children	rail:position rail:size
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element

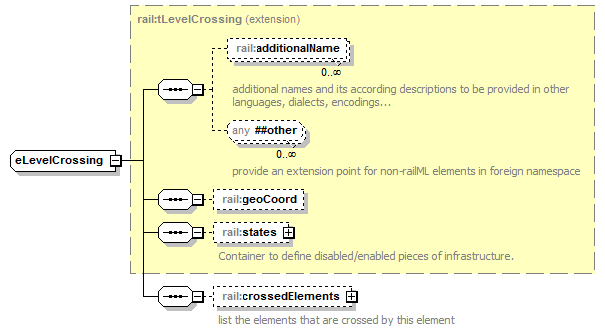

complexType eLevelCrossing

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tLevelCrossing
children	rail:additionalName rail:geoCoord rail:states rail:crossedElements
used by	element  eLevelCrossings/levelCrossing
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tDelimitedDirection            documentation a limited direction, which allows only for "up", "down" and "unknown" length   rail:tLengthM      0.000      angle   rail:tAngleDegQuadrant      90      protection   xs:string      none      ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking

element eLevelCrossing/crossedElements

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eCrossedElements
children	rail:crossedElement
annotation	documentation list the elements that are crossed by this element

complexType eLevelCrossings

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:levelCrossing
used by	element  eTrackElements/levelCrossings

element eLevelCrossings/levelCrossing

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eLevelCrossing
children	rail:additionalName rail:geoCoord rail:states rail:crossedElements
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tDelimitedDirection            documentation a limited direction, which allows only for "up", "down" and "unknown" length   rail:tLengthM      0.000      angle   rail:tAngleDegQuadrant      90      protection   xs:string      none      ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking

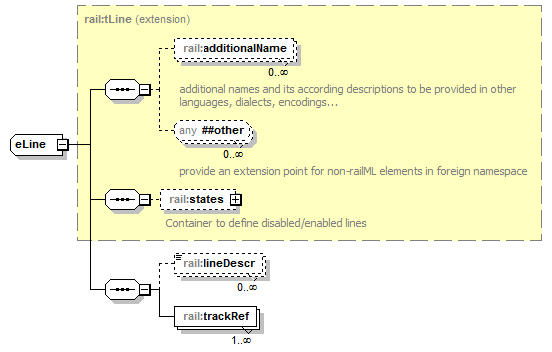

complexType eLine

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tLine
children	rail:additionalName rail:states rail:lineDescr rail:trackRef
used by	element  eTrackGroups/line
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag type   rail:tLineType            documentation distinguish between different line type: main line, secondary line... infrastructureManagerRef   rail:tGenericRef            documentation reference to the infrastructure manager entry lineCategory   rail:tLineClassificationType            documentation the category of the line according to the EU regulation EN 15528 (other national values are also possible)

element eLine/lineDescr

diagram
namespace	http://www.railml.org/schemas/2016
type	xs:string

element eLine/trackRef

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tTrackRefInGroup
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element sequence   rail:tPositiveCounter

complexType eLineVis

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tElementWithReference
children	rail:trackVis
used by	element  eInfrastructureVisualization/lineVis
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element

element eLineVis/trackVis

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTrackVis
children	rail:trackElementVis
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element

complexType eLocallyControlledArea

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tLocallyControlledArea
children	rail:additionalName rail:states rail:trackRef
used by	element  eTrackGroups/locallyControlledArea
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag ocpRef   rail:tGenericRef            documentation DEPRECATED: use attribute 'ocpStationRef' or 'controllerRef' instead ocpStationRef   rail:tGenericRef            documentation reference on ocp element, e.g. station controllerRef   rail:tGenericRef            documentation reference on controller element, e.g. interlocking

element eLocallyControlledArea/trackRef

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tTrackRefInGroup
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element sequence   rail:tPositiveCounter

complexType eMileageChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:mileageChange
used by	element  eTrackTopology/mileageChanges

element eMileageChanges/mileageChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tMileageChange
children	rail:additionalName rail:geoCoord
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag absPosIn   rail:tLengthM   required         absPosInOffset   rail:tLengthM   optional         documentation DEPRECATED: not needed, not used type   rail:tMileageChangeDescr   required         absPos   rail:tLengthM   required         pos   rail:tLengthM   required         absDir   rail:tMileageDirection            documentation defining a change direction for the mileageChange with values "raising" or "falling" dir   rail:tStrictDirection            documentation DEPRECATED: use the new attribute absDir instead to define the mileage's change direction

complexType eOcp

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tOperationControlPoint
children	rail:additionalName rail:propOperational rail:propService rail:propEquipment rail:propOther rail:tsi rail:area rail:geoCoord rail:designator
used by	element  eOperationControlPoints/ocp
attributes	Name   Type   Use   Default   Fixed   Annotation name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag; should always be given id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding type   rail:tOcpNameType            documentation type of the ocp name number   xs:string            documentation DEPRECATED: use the 'designator' with its parameters 'register' and 'entry' instead abbrevation   xs:string            documentation DEPRECATED: use the 'designator' with its parameters 'register' and 'entry' instead timezone   rail:tTimeZone            parentOcpRef   rail:tGenericRef   optional         documentation references the one and only parent ocp of this ocp

element eOcp/propOperational

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOcpPropOperational
children	rail:uptime
attributes	Name   Type   Use   Default   Fixed   Annotation operationalType   rail:tOcpOperationalType            trafficType   rail:tOcpTrafficType            orderChangeable   xs:boolean      false      ensuresTrainSequence   xs:boolean      true

element eOcp/propService

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpPropService
attributes	Name   Type   Use   Default   Fixed   Annotation passenger   xs:boolean      false      service   xs:boolean      false      ship   xs:boolean      false      bus   xs:boolean      false      airport   xs:boolean      false      tariffpoint   xs:boolean      false      goodsLoading   xs:boolean      false      goodsSiding   xs:boolean      false      goodsIntermodal   xs:boolean      false      goodsMarshalling   xs:boolean      false

element eOcp/propEquipment

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOcpPropEquipment
children	rail:summary rail:trackRef

element eOcp/propOther

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOcpPropOther
children	rail:additionalName
attributes	Name   Type   Use   Default   Fixed   Annotation frontier   xs:boolean      false      chargeFrontier   xs:boolean      false      status   rail:tOcpStatus      operational

element eOcp/tsi

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpTsi
attributes	Name   Type   Use   Default   Fixed   Annotation country   rail:tTwoDigits            location   rail:tFiveDigits            check   rail:tOneDigit
annotation	documentation DEPRECATED. Use register entry "PrimaryLocationCode" instead.

element eOcp/area

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpArea
attributes	Name   Type   Use   Default   Fixed   Annotation name   rail:tGenericName            number   rail:tPositiveCounter            zip   xs:string   optional

element eOcp/geoCoord

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tGeoCoord
attributes	Name   Type   Use   Default   Fixed   Annotation coord   rail:tCoordinateList   required         extraHeight   xs:double            epsgCode   xs:anyURI            heightEpsgCode   xs:anyURI

element eOcp/designator

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tDesignator
attributes	Name   Type   Use   Default   Fixed   Annotation register   xs:string   required         documentation name of the register, e.g. IBNR, DB640, RL100 or DIDOK entry   xs:string   required         documentation the OCP's code in the specified register startDate   xs:date            endDate   xs:date

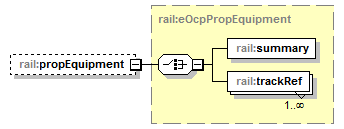

complexType eOcpPropEquipment

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:summary rail:trackRef
used by	element  eOcp/propEquipment

element eOcpPropEquipment/summary

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpPropEquipmentSummary
attributes	Name   Type   Use   Default   Fixed   Annotation signalBox   rail:tInterlockingTypes            powerstation   xs:boolean      false      hasHomeSignals   xs:boolean      false      hasStarterSignals   xs:boolean      false      hasSwitches   xs:boolean      false

element eOcpPropEquipment/trackRef

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tTrackRefInGroup
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element sequence   rail:tPositiveCounter

complexType eOcpPropOperational

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tOcpPropOperational
children	rail:uptime
used by	element  eOcp/propOperational
attributes	Name   Type   Use   Default   Fixed   Annotation operationalType   rail:tOcpOperationalType            trafficType   rail:tOcpTrafficType            orderChangeable   xs:boolean      false      ensuresTrainSequence   xs:boolean      true

element eOcpPropOperational/uptime

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpUptime
attributes	Name   Type   Use   Default   Fixed   Annotation from   xs:time   required         until   xs:time   required         mode   rail:tOcpManMode   required

complexType eOcpPropOther

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tOcpPropOther
children	rail:additionalName
used by	element  eOcp/propOther
attributes	Name   Type   Use   Default   Fixed   Annotation frontier   xs:boolean      false      chargeFrontier   xs:boolean      false      status   rail:tOcpStatus      operational

element eOcpPropOther/additionalName

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOcpAdditionalName
attributes	Name   Type   Use   Default   Fixed   Annotation value   xs:string   required         documentation Deprecated for next major release, use attribute "name" in element "additionalName" in "ocp" instead type   rail:tOcpNameType            documentation Deprecated for next major release, element "additionalName" in "ocp" provides the same attribute xml:lang   derived by: xs:language            documentation Deprecated for next major release, element "additionalName" in "ocp" provides the same attribute
annotation	documentation Deprecated for next major release, use "additionalName" in "ocp" instead.

complexType eOcpVis

diagram
namespace	http://www.railml.org/schemas/2016
type	extension of rail:tElementWithReference
children	rail:position rail:size
used by	element  eInfrastructureVisualization/ocpVis
attributes	Name   Type   Use   Default   Fixed   Annotation ref   rail:tGenericRef   required         documentation reference is required because it's the purpose of the element

element eOcpVis/position

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tPoint
attributes	Name   Type   Use   Default   Fixed   Annotation x   xs:double   required         y   xs:double   required

element eOcpVis/size

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tSize
attributes	Name   Type   Use   Default   Fixed   Annotation width   xs:double   required         height   xs:double   required

complexType eOcsElements

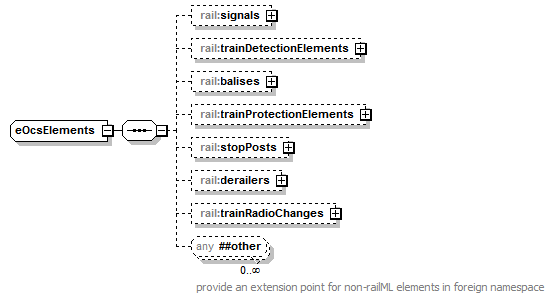

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:signals rail:trainDetectionElements rail:balises rail:trainProtectionElements rail:stopPosts rail:derailers rail:trainRadioChanges
used by	element  eTrack/ocsElements

element eOcsElements/signals

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eSignals
children	rail:signal rail:signalGroups

element eOcsElements/trainDetectionElements

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTrainDetectionElements
children	rail:trainDetector rail:trackCircuitBorder

element eOcsElements/balises

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eBalises
children	rail:balise rail:baliseGroup

element eOcsElements/trainProtectionElements

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTrainProtectionElements
children	rail:trainProtectionElement rail:trainProtectionElementGroup

element eOcsElements/stopPosts

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eStopPosts
children	rail:stopPost

element eOcsElements/derailers

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eDerailers
children	rail:derailer

element eOcsElements/trainRadioChanges

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eTrainRadioChanges
children	rail:trainRadioChange

complexType eOperationControlPoints

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:ocp
used by	element  infrastructure/operationControlPoints

element eOperationControlPoints/ocp

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:eOcp
children	rail:additionalName rail:propOperational rail:propService rail:propEquipment rail:propOther rail:tsi rail:area rail:geoCoord rail:designator
attributes	Name   Type   Use   Default   Fixed   Annotation name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag; should always be given id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding type   rail:tOcpNameType            documentation type of the ocp name number   xs:string            documentation DEPRECATED: use the 'designator' with its parameters 'register' and 'entry' instead abbrevation   xs:string            documentation DEPRECATED: use the 'designator' with its parameters 'register' and 'entry' instead timezone   rail:tTimeZone            parentOcpRef   rail:tGenericRef   optional         documentation references the one and only parent ocp of this ocp

complexType eOperationModeChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:operationModeChange
used by	element  eTrackElements/operationModeChanges

element eOperationModeChanges/operationModeChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOperationModeChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" modeLegislative   xs:string   required         modeExecutive   xs:string   required         clearanceManaging   rail:tClearanceManaging

complexType eOwnerChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:ownerChange
used by	element  eTrackElements/ownerChanges

element eOwnerChanges/ownerChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tOwnerChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" ownerName   xs:string   optional         documentation DEPRECATED, use infrastructureManagerRef instead to refer to a listed infrastructureManager uic-no   rail:tPositiveCounter            infrastructureManagerRef   rail:tGenericRef            documentation reference to the infrastructure manager entry

complexType ePlatformEdges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:platformEdge
used by	element  eTrackElements/platformEdges

element ePlatformEdges/platformEdge

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tPlatformEdge
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used length   rail:tLengthM            documentation length along the track in meters dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" height   rail:tLengthMM            documentation height above the rails in millimeters side   rail:tSide            documentation side as seen from the oriented track, e.g. left or right ocpRef   rail:tGenericRef            documentation reference to the OCP, where the platform edge / service section belongs to parentPlatformEdgeRef   rail:tGenericRef            documentation reference to a parent platform edge for grouping platform edge parts together

complexType ePowerTransmissionChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:powerTransmissionChange
used by	element  eTrackElements/powerTransmissionChanges

element ePowerTransmissionChanges/powerTransmissionChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tPowerTransmissionChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription            documentation should be interpreted in its elements' context, substantiates the name xml:lang   derived by: xs:language            documentation natural language identification according to http://www.w3.org/TR/xml/#sec-lang-tag pos   rail:tLengthM   required         absPos   rail:tLengthM            absPosOffset   rail:tLengthM   optional         documentation DEPRECATED, not needed, not used dir   rail:tStrictDirection            documentation a strict direction, which allows only for "up" and "down" type   rail:tPowerTransmissionType      adhesion      style   xs:string

complexType eRadiusChanges

diagram
namespace	http://www.railml.org/schemas/2016
children	rail:radiusChange
used by	element  eTrackElements/radiusChanges

element eRadiusChanges/radiusChange

diagram
namespace	http://www.railml.org/schemas/2016
type	rail:tRadiusChange
children	rail:additionalName rail:geoCoord rail:states
attributes	Name   Type   Use   Default   Fixed   Annotation id   rail:tGenericID   required         documentation XML-file-wide unique identity is required for later referencing that element code   rail:tGenericName            documentation for typical, specific abbreviations, used in different systems with the same understanding name   rail:tGenericName            documentation should be interpreted in its elements' context (e.g. track/name, vehicle/name) description   rail:tElementDescription
